SS4P PSC
SS4P PSC, a new generation of adaptive platform screen doors
The PSC (Platform Safety Curtain) system was developed to address a major issue in rail operations. Indeed, differences in the number of doors, width and positioning of access points between different types of rolling stock mean that conventional platform screen doors are incompatible with lines serving multiple types of trains.
The innovative design of the SS4P PSC is based on fully sliding doors that move to create an opening precisely aligned with the train’s doors, regardless of their configuration. Just like a curtain opening and closing, the SS4P PSC automatically adjusts its opening to suit the rolling stock present at the station, thereby ensuring a high level of safety whilst offering great operational flexibility.
The benefits of the SS4P PSC

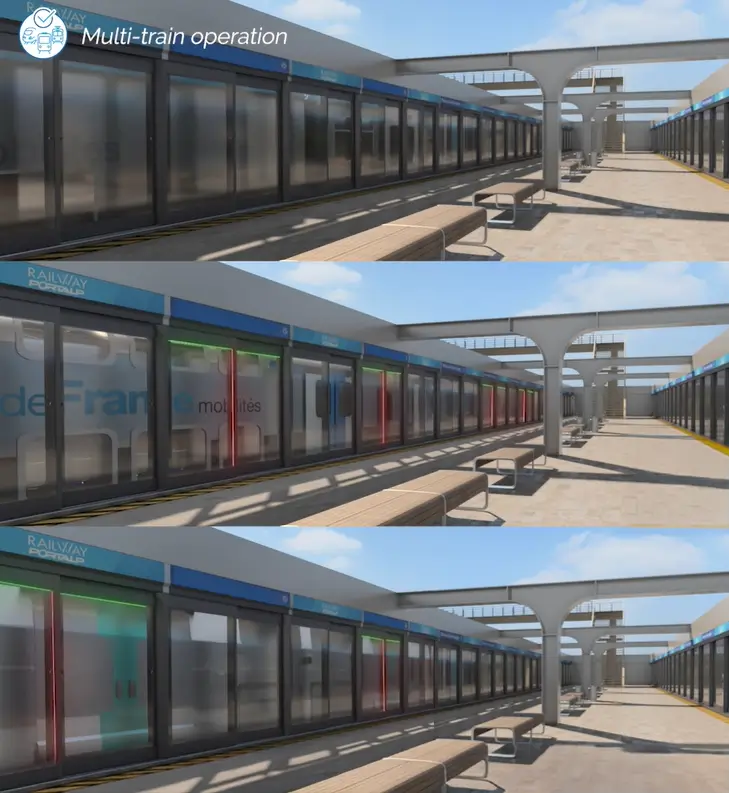

Multi-train operation
- Compatible with platforms used by different types of trains.
- An internal database enables automatic adaptation to each train configuration.
- Intelligent ASL systems with integrated motor, controller, positioning system and data transmission capabilities.
- Individual positioning of the ASLs is controlled by a SIL 4-rated programmable logic controller (PLC) to ensure precise door alignment.
Adaptation to different stopping points
- Compatible with platforms used by different types of trains.
- An internal database enables automatic adaptation to each train configuration.
- Intelligent ASL systems with integrated motor, controller, positioning system and data transmission capabilities.
- Individual positioning of the ASLs is controlled by a SIL 4-rated programmable logic controller (PLC) to ensure precise door alignment.
Reducing civil costs engineering
- No fixed posts at the edge of the platform.
- There’s no need to reinforce the edge of the platform.
- A technical lintel fixed directly to the vault or using brackets attached to the platform.
Simplified installation
- Can be fitted to the ceiling.
- All fixed components can be prepared overnight. The ASL system can be fully installed in a single night using a specialist work train.
- No disruptions to passenger services during the day.
- No obstacles on the platform during installation.
- Passenger safety is ensured during installation and operation.
Extra-wide opening
- The PSC SS4P system enables the transport of long components by work trains (for example, escalator units).
- Secure maintenance mode allows all ASLs to be moved.
- Maximum opening of up to half the length of the platform.
Compatibility with narrow platforms
- Problems caused by narrow platforms.
- Swing doors can obstruct the flow of passengers.
- Each ASL acts as an emergency exit.
- Sliding emergency doors prevent any obstruction.
- Simplified interface with the platforms.
Easy maintenance
- Simplified system architecture.
- A reduced number of component types.
- Doors, windows and standardised electronic cards.
- Less wiring and fewer limit switches.
- Continuity of maintenance.
- Spare ASL units are available on site for quick replacement whilst the system is in operation.
- Automatic reallocation of ASLs following replacement.
- Automatic takeover and locking of adjacent ASLs in the event of a failure.
Electrification
- xxxxx
- xxxxx
- xxxx
- xxxx
- xxxxx
Safety
The SS4P PSD offers a level of safety equivalent to that of a conventional platform screen door (PSD), whilst providing the flexibility required to operate lines serving multiple types of trains.
Key points:
- Complies with EN 17168, the benchmark standard for platform screen doors: crowd-push and mechanical tests, etc.
- A level of safety equivalent to that of a conventional platform screen door.
- SIL 4-certified door unlocking.
- SIL 4-certified detection of an unlocked door (door open).
- Monitoring of the mechanical energy of the doors in accordance with SIL 2.
- Opening and closing times are the same as those for the train doors.
The structure – The design
The PSC is based on a modular design intended to adapt to the specific requirements of each station. Its structure can be configured according to the length of the installation, the available mounting options and the characteristics of the platform, whilst ensuring the rigidity and mechanical performance of the entire system.
- Suspended technical rail, securing the entire system from above.

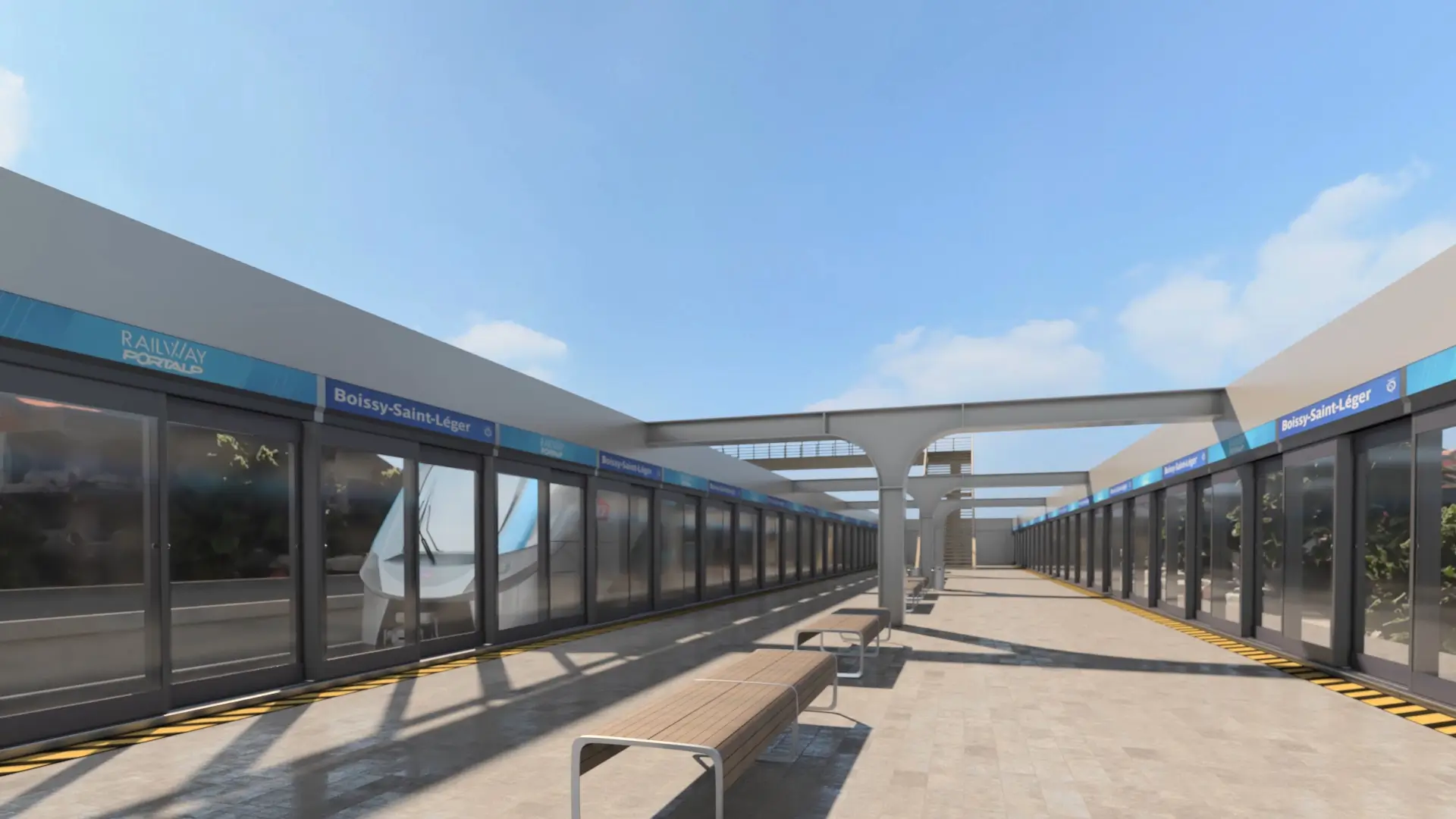

- T-shaped load-bearing beam, supporting the structure and the moving parts.
- Flexible configuration with or without intermediate posts, depending on the project requirements and load-bearing capacity.
- Additional supports (arches or brackets) may be used to reinforce the structure where installation conditions so require.
- Controlled deformation in response to stresses caused by passing trains, wind and operational loads.
- Running rails integrated into the technical fascia, on both the track side and the platform side, to guide the sliding components (ASL).
Our platform screen doors proudly bear the Origine France Garantie label
We are the only manufacturer of platform screen doors with the Origine France Garantie label. This label confirms our commitment to local and quality production. We are further affirming our desire to provide our customers with traceability of our products. This new label thus provides a clear and objective indication of origin.
Guarantee of a French manufacture
Support for the French economy and employment
Commitment to local production
Recognition of our know-how in France and abroad
